Outdoor LED Flood Lights



50 Watt Outdoor LED Flood Our Best Seller
Features:
Input Voltage 85-265V AC
Epistar 35mm LED chip
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 120°
Working temp -30° -45°C
Housing Aluminum alloy
4750 Lumens
11.4"W x 11.3"H x 7.2"D
Weight 7.7 Lbs
Color:
Cool White 6000 - 6500K
Warm White 3000K
RGB Color Changing
Certification:
CCC, CE, EMC, RoHS,

50 Watt LED Flood Light Dimensions
Model Number Description Each 4+
50W-LED-Flood-CW Cool White 70.00 65.00
50W-LED-Flood-WW Warm White 70.00 65.00
50W-LED-Flood-RGB Color Changing 90.00 80.00
Replacement Parts
50W-LED-Driver Transformer 25.00 20.00
50W-LED-Chip Epistar Chip 30.00 25.00
30 Watt Outdoor LED Flood Light
Features:
Input Voltage 85-265V AC
Epistar 35mm LED chip
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 120°
Working temp -30° -45°C
Housing Aluminum alloy
2850 Lumens
8.7"W x 7.3"H x 4.3"D
Weight 4 Lbs
Cool White 6000 - 6500K
CCC, CE, EMC, RoHS,

50 Watt LED Flood Light Dimensions
Model Number Description Each 4+
30W-LED-Flood-CW Cool White 50.00 45.00
Replacement Parts
30W-LED-Driver Transformer 15.00 12.00
30W-LED-Chip Epistar Chip 25.00 20.00
20 Watt Outdoor LED Flood Light
Features:
Input Voltage 85-265V AC
Epistar 35mm LED chip
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 120°
Working temp -30° -45°C
Housing Aluminum alloy
1900 Lumens
7"W x 5.5"H x 3.7"D
Weight 3.3 Lbs
Cool White 6000 - 6500K
CCC, CE, EMC, RoHS,

50 Watt LED Flood Light Dimensions
Model Number Description Each 4+
20W-LED-Flood-CW Cool White 40.00 35.00
Replacement Parts
20W-LED-Driver Transformer 13.00 10.00
20W-LED-Chip Epistar Chip 15.00 10.00
10 Watt Outdoor LED Flood Light
Features:
Input Voltage 85-265V AC
Epistar 35mm LED chip
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 120°
Working temp -30° -45°C
Housing Aluminum alloy
950 Lumens
4.5"W x 3.4"H x 3"D
Weight 2 Lbs
Cool White 6000 - 6500K
CCC, CE, EMC, RoHS,

50 Watt LED Flood Light Dimensions
Model Number Description Each 4+
10W-LED-Flood-CW Cool White 20.00 16.00
Replacement Parts
10W-LED-Driver Transformer 7.00 5.00
10W-LED-Chip Epistar Chip 10.00 7.00

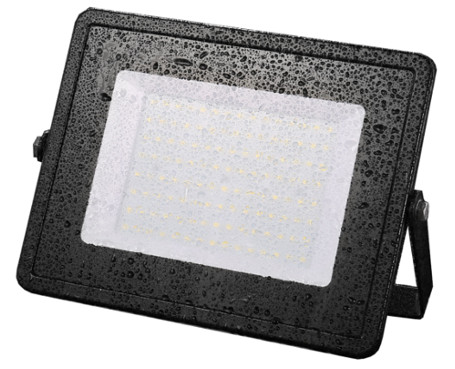

100 Watt Outdoor LED Flood Light
Features:
Input Voltage 85-265V AC
2X50W Epistar LED chip
2x50W IP67 Waterproof Drivers
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Thick Tempered Glass
Silicone Rubber Seal
15000 Lumens
11.3"W x 10.4"H x 5.8"D
Weight ? Lbs
Color:
Cool White 6000 - 6500K
Certification:
CCC, CE, EMC, RoHS,

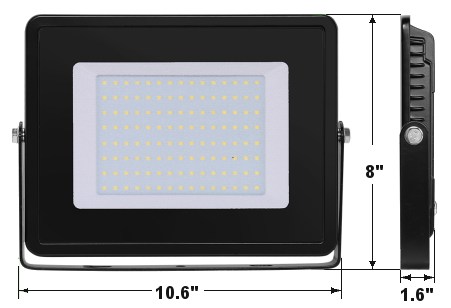

100 Watt LED Flood Light
50 Watt LED Flood Light Drivers 150 Watt LED Flood Light radiator 150 Watt LED Flood Light Mounting
Model Number Description Each 2+ 4+
100W-LED-Flood-CW Cool White 130.00 120.00 110.00
Replacement Parts
50Wx2-LED-Driver Transformer - -
50Wx2-LED-Chip Epistar Chip - -
150 Watt Outdoor LED Flood Light

Features:
Input Voltage 85-265V AC
3X50W Epistar LED chip
3x50W IP67 Waterproof Drivers
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Thick Tempered Glass
Silicone Rubber Seal
15000 Lumens
15"W x 11.3"H x 6.3"D
Weight 14.5 Lbs
Color:
Cool White 6000 - 6500K
Certification:
CCC, CE, EMC, RoHS,

150 Watt LED Flood Light
50 Watt LED Flood Light Drivers 150 Watt LED Flood Light radiator 150 Watt LED Flood Light Mounting
Model Number Description Each 2+ 4+
150W-LED-Flood-CW Cool White 195.00 185.00 175.00
Replacement Parts
50Wx3-LED-Driver Transformer - -
50Wx3-LED-Chip Epistar Chip - -
200 Watt Outdoor LED Flood Light

Features:
Input Voltage 85-265V AC
4X50W Epistar 35mm LED chip
4x50W IP67 Waterproof Drivers
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Thick Tempered Glass
Silicone Rubber Seal
20,000 Lumens
15.3"W x 13.8"H x 6.3"D
Weight 18.5 Lbs

Color:
Cool White 6000 - 6500K

Certification:
CCC, CE, EMC, RoHS,

200 Watt LED Flood Light Dimensions
50 Watt LED Flood Light Drivers 150 Watt LED Flood Light radiator 150 Watt LED Flood Light Mounting
Model Number Description Each 2+ 4+
200W-LED-Flood-CW Cool White 260.00 250.00 240.00
Replacement Parts
50W-LED-Driver Transformer - -
50W-LED-Chip Epistar Chip - -

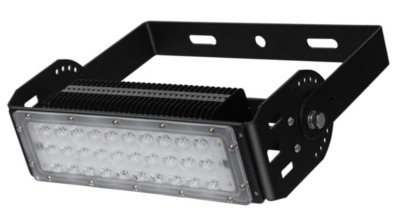

50 Watt Outdoor LED Flood Light / Tunnel Light
Features:
Input Voltage 85-265V AC
HD Cast Aluminum Radiator
Maximum Heat Dissipation
Extends the Life of the LED's
50w MeanWell Series Driver
Detachable Module Design
Bulls Eye Lens Cover
Extra HD Adjustable Bracket
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Silicone Rubber Seal
4,860 Lumens
11.5"W x 4.6"H x 5.6"D
Weight 8 Lbs

Color:
Cool White 6000 - 6500K

Certification:
CCC, CE, EMC, RoHS,


50 Watt LED Flood Light Tunnel Light

detachable LED Module
50w Detachable
Modules
LED Flood Light Bulls Eye Lens
Bulls Eye
LED
LED Flood Light Mounting
HD Mounting
Bracket
Model Number Description Each 2+ 4+
50W-LED-Flood-CW Cool White 110.00 100.00 90.00
Replacement Parts
50W-LED-Driver 50w MeanWell - -
1x50W-LED-Module Epistar Chip - -

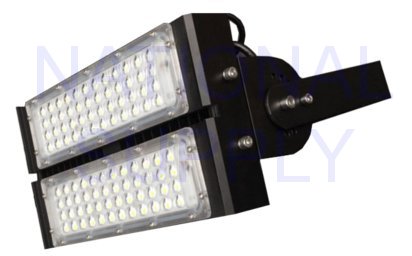

100 Watt Outdoor LED Flood Light / Tunnel Light
Features:
Input Voltage 85-265V AC
HD Cast Aluminum Radiator
Maximum Heat Dissipation
Extends the Life of the LED's
100w MeanWell Series Driver
Detachable Module Design
Bulls Eye Lens Cover
Extra HD Adjustable Bracket
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Silicone Rubber Seal
9,660 Lumens
11.5"W x 9"H x 5.6"D
Weight 11 Lbs

Color:
Cool White 6000 - 6500K

Certification:
CCC, CE, EMC, RoHS,


100 Watt LED Flood Light Tunnel Light

detachable LED Module
50w Detachable
Modules
LED Flood Light Bulls Eye Lens
Bulls Eye
LED
150 Watt LED Flood Light Mounting
HD Mounting
Bracket
Model Number Description Each 2+ 4+
100W-LED-Flood-CW Cool White 170.00 160.00 150.00
Replacement Parts
100W-LED-Driver 100w MeanWell - -
2x50W-LED-Module Epistar Chip - -

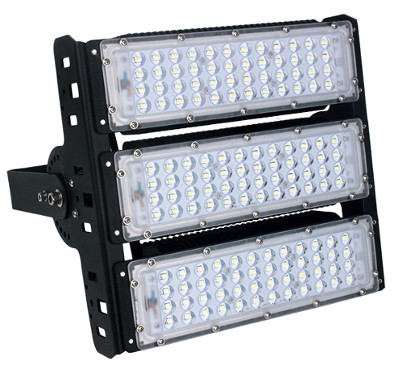

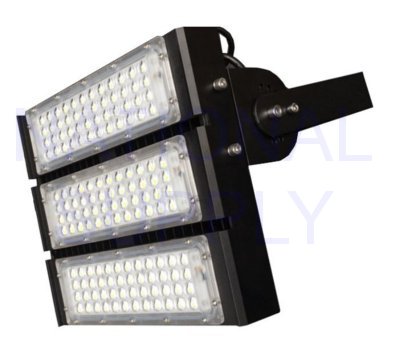

150 Watt Outdoor LED Flood Light / Tunnel Light
Features:
Input Voltage 85-265V AC
HD Cast Aluminum Radiator
Maximum Heat Dissipation
Extends the Life of the LED's
150w MeanWell Series Driver
Detachable Module Design
Bulls Eye Lens Cover
Extra HD Adjustable Bracket
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Silicone Rubber Seal
14,475 Lumens
11.5"W x 13.5"H x 5.6"D
Weight 14.5 Lbs

Color:
Cool White 6000 - 6500K

Certification:
CCC, CE, EMC, RoHS,


100 Watt LED Flood Light Tunnel Light

detachable LED Module
50w Detachable
Modules
LED Flood Light Bulls Eye Lens
Bulls Eye
LED
150 Watt LED Flood Light Mounting
HD Mounting
Bracket
Model Number Description Each 2+ 4+
150W-LED-Flood-CW Cool White 220.00 210.00 200.00
Replacement Parts
150W-LED-Driver 150w MeanWell - -
3x50W-LED-Module Epistar Chip - -


150 Watt Outdoor LED Flood Light / Tunnel Light
Features:
Input Voltage 85-265V AC
HD Cast Aluminum Radiator
Maximum Heat Dissipation
Extends the Life of the LED's
200w MeanWell Series Driver
Detachable Module Design
Bulls Eye Lens Cover
Extra HD Adjustable Bracket
Hours 50,000
Waterproof IP67
Indoor / Outdoor
About IP Protection
Beam angle 90°
Working temp -30° -45°C
Housing Aluminum alloy
Silicone Rubber Seal
19,500 Lumens
11.5"W x 18.2"H x 5.6"D
Weight 17.5 Lbs

Color:
Cool White 6000 - 6500K

Certification:
CCC, CE, EMC, RoHS,


200 Watt LED Flood Light Tunnel Light

detachable LED Module
50w Detachable
Modules
LED Flood Light Bulls Eye Lens
Bulls Eye
LED
200 Watt LED Flood Light Mounting
HD Mounting
Bracket
Model Number Description Each 2+ 4+
200W-LED-Flood-CW Cool White 290.00 280.00 270.00
Replacement Parts
200W-LED-Driver 200w MeanWell - -
4x50W-LED-Module Epistar Chip - -
About IP Protection (Ingress Protection codes). IP65, IP66, IP67
IP65 Protected against low pressure jets of water from all directions good
IP66 Protected against high pressure jets of water from all directions better
IP67 Protected against the effects of temporary immersion in water best
LED vs. Quartz
We are often asked about the light output of LED flood lights in comparison to quartz halogen flood lights.

A 50 watt LED flood light has the equilivent delivered light output comperable of a 300 watt quartz halogen flood light. Determination based on the lumen output and by visual observations in the field.

Kelvin Scale
Kelvin Scale (K)
Understanding color temperatures

color temperatures between 2,700–3,000 K are called warm colors wile color temperatures over 5,000K are called cool colors (bluish white).

In the carnival and amusement industry it has always preferred to use lighting in the cooler colors. The bluish white colors appear brighter and more lively.

It is important to understand that the color of the light source can affect the color of the image it is projected on to. Kelvin Scale
