Pins and Clips

R-Keys D-Clips Lynch Pins And Diaper Pins

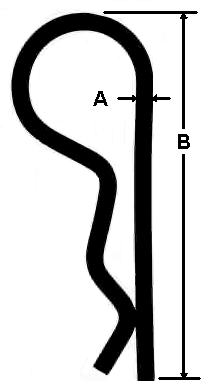

Hitch Pin Clips "R-Keys"

Hitch Pin Clip R-Key R_Key 2 Hitch Pin Clip R-Key R_Key 3 Hitch Pin Clip R-Key R_Key 7 Hitch Pin Clip R-Key R_Key 11 Hitch Pin Clip R-Key R_Key 10 Hitch Pin Clip R-Key R_Key 6 Hitch Pin Clip R-Key R_Key 19 Hitch Pin Clip R-Key R_Key
#2 #3 #7 #11 #10 #6 #19 #35
1/16 3/32 3/32 1/8 5/32 3/16 1/4 1/4
1-5/16 1-5/8 2-9/16 2-9/16 2-15/16 3-1/4 4 5-1/4

Snapper Pins "D-Clips"

Square

D-Clip Snapper Pin
Item # A B C
14-SQ 2-1/2 1-5/8 1/4
515-SQ 2-1/2 1-5/8 5/16
38-SQ 2-1/4 1-1/2 3/8

Half Round

D-Clip Round Snapper Pin
Item # A B C
14-SQ 2-1/2 1-5/8 1/4
515-SQ 2-1/2 1-5/8 5/16
38-SQ 2-1/4 1-1/2 3/8

Tab Lock

Snapper Pin D-Clip Tab-Lock
Item # A B C
14-SQ 2-1/2 1-5/8 1/4
515-SQ 2-1/2 1-5/8 5/16
38-SQ 2-1/4 1-1/2 3/8

Lynch Pins And Diaper Pins

Lynch Pins

Lynch Pin Clip
Item # A B C
14-LP 1-3/4 1-1/4 1/4
316-LP 1-3/8 1-1/8 3/16
38-LP 1-3/4 1-1/8 3/8

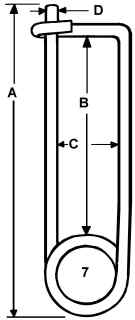

Diaper Pin Clip

Safety Pins
"Diaper Pins"
Item # A B C D
4 1-3/4 1-1/16 3/8 .058
5 2-3/4 1-11/16 5/8 .910
6 4-3/8 2-3/16 13/16 .120
7 5-3/4 3-3/4 1-1/8 .148
54 8-1/4 5 1-5/8 .243
55 9 5 2-1/4 .243

Item # Description - Commonly Called Ea. Per 100 Per 500 Per 100
#2 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#3 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#7 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#11 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#10 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#6 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#19 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor NA X X X
#35 R-Key R-Key - R-Clip - Hitch Pin Clip - Hair clip - Tractor X X X X
14-D D-Clip - Snapper Pin -PTO Lock Pin - Wire Lock - Tractor X X X X
516-D D-Clip - Snapper Pin - PTO Lock Pin - Wire Lock - Tractor X X X X
38-D D-Clip - Snapper Pin - PTO Lock Pin - Wire Lock - Tractor NA X X X
14-HR Half Round PTO Lock Pin - Snapper Pin - Wire Lock - Tractor X X X X
516-HR Half Round PTO Lock Pin - Snapper Pin - Wire Lock - Tractor X X X X
38-HR Half Round PTO Lock Pin - Snapper Pin - Wire Lock - Tractor yes yes yes yes
14-TAB Half Round Tab Lock Pin - Snapper Pin - PTO - Tractor X X X X
5/16-TAB Half Round Tab Lock Pin - Snapper Pin - PTO - Tractor X X X X
14-TAB Half Round Tab Lock Pin - Snapper Pin - PTO - Tractor X X X X
14-Lynch Lynch Pin - Linch Pin - Wire Lock - PTO - Tractor X X X X
516-Lynch Lynch Pin - Linch Pin - Wire Lock - PTO - Tractor X X X X
38-Lynch Lynch Pin - Linch Pin - Wire Lock - PTO - Tractor X X X X
#4-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X
#5-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X
#6-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X
#7-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X
#54-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X
#55-DP Safety Pin - Diaper Pin - Wire Lock - Tractor X X X X


National Supply has become a nationwide leader in the distribution of specialty lighting and electrical products for the Carnival and Amusement Park Industry. National Supply is constantly striving to expand our inventories, so you the customer can do all your shopping at one location. Service is our number one priority.
